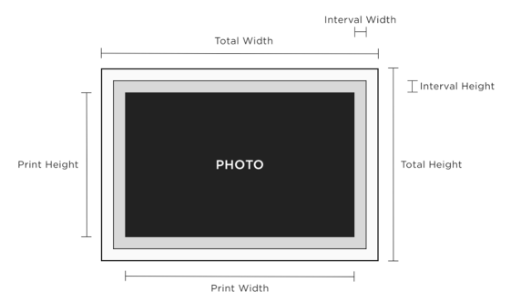

Please refer to the table below for the print and total outer dimensions of the Classic Frame - Chelsea.
| Classic Frame - Chelsea | Total Height (Print + Float Area + Frame) |
Total Width (Print + Float Area + Frame) |
Print Height | Print Width | Interval Height | Interval Width |
|---|---|---|---|---|---|---|
| 5x7" (127x177.8mm) |
7.0“ (183mm) |
9.0“ (233.8mm) |
3.9" (99mm) |
5.9" (149.8mm) |
0.3" (7mm) |
0.3" (7mm) |
| 6x6" (152.4x152.4mm) |
8.0“ (208.4mm) |
8.0“ (208.4mm) |
4.9" (124.4mm) |
4.9" (124.4mm) |
0.3" (7mm) |
0.3" (7mm) |
| 8x8" (203.2x203.2mm) |
10.0“ (259.6mm) |
10.0“ (259.6mm) |
6.9" (175.2mm) |
6.9" (175.2mm) |
0.3" (7mm) |
0.3" (7mm) |
| 8x10" (203.2x254mm) |
10.0“ (259.6mm) |
12.0" (310.6mm) |
6.9" (175.2mm) |
8.9" (226mm) |
0.3" (7mm) |
0.3" (7mm) |
| 8x12" (203.2x304.8mm) |
10.0“ (259.6mm) |
14.0" (361.4mm) |
6.9" (175.2mm) |
10.9" (276.8mm) |
0.3" (7mm) |
0.3" (7mm) |
| 10x10" (254x254mm) |
12.0" (310.6mm) |
12.0" (310.6mm) |
8.9" (226mm) |
8.9" (226mm) |
0.3" (7mm) |
0.3" (7mm) |
| 10x20" (254x508mm) |
12.0" (310.6mm) |
22.0" (564.4mm) |
8.9" (226mm) |
18.9" (480mm) |
0.3" (7mm) |
0.3" (7mm) |
| 10x24" (254x609.6mm) |
12.0" (310mm) |
26.0" (666mm) |
8.9" (226mm) |
22.9" (581.6mm) |
0.3" (7mm) |
0.3" (7mm) |
| 11x14" (279.4x355.6mm) |
13.0" (336mm) |
16.0" (411.4mm) |
9.9" (251.4mm) |
12.9" (327.6mm) |
0.3" (7mm) |
0.3" (7mm) |
| 12x12" (304.8x304.8mm) |
14.0" (361.4mm) |
14.0" (361.4mm) |
10.9" (276.8mm) |
10.9" (276.8mm) |
0.3" (7mm) |
0.3" (7mm) |
| 12x16" (304.8x406.4mm) |
14.0" (361.4mm) |
18.0" (462.4mm) |
10.9" (276.8mm) |
14.9" (378.4mm) |
0.3" (7mm) |
0.3" (7mm) |
| 12x18" (304.8x457.2mm) |
14.0" (361.4mm) |
20.0" (513.2mm) |
10.9" (276.8mm) |
16.9" (429.2mm) |
0.3" (7mm) |
0.3" (7mm) |
| 12x24" (304.8x609.6mm) |
14.0" (361.4mm) |
26.0" (666.2mm) |
10.9" (276.8mm) |
22.9" (581.6mm) |
0.3" (7mm) |
0.3" (7mm) |
| 12x36" (304.8x914.4mm) |
14.0" (360.6mm) |
38.0" (970mm) |
10.9" (276.8mm) |
34.9" (886.4mm) |
0.3" (7mm) |
0.3" (7mm) |
| 16x16" (406.4x406.4mm) |
18.0" (462.4mm) |
18.0" (462.4mm) |
14.9" (378.4mm) |
14.9" (378.4mm) |
0.3" (7mm) |
0.3" (7mm) |
| 16x20" (406.4x508mm) |
18.0" (462.4mm) |
22.0" (564.4mm) |
14.9" (378.4mm) |
18.9" (480mm) |
0.3" (7mm) |
0.3" (7mm) |
| 16x24" (406.4x609.6mm) |
18.0" (462.4mm) |
26.0" (666.2mm) |
14.9" (378.4mm) |
22.9" (581.6mm) |
0.3" (7mm) |
0.3" (7mm) |
| 18x24" (457.2x609.6mm) |
20.0" (513.2mm) |
26.0" (666.2mm) |
16.9" (429.2mm) |
22.9" (581.6mm) |
0.3" (7mm) |
0.3" (7mm) |
| 20x20" (508x508mm) |
22.0" (564.4mm) |
22.0" (564.4mm) |
18.9" (480mm) |
18.9" (480mm) |
0.3" (7mm) |
0.3" (7mm) |
| 20x24" (508x609.6mm) |
22.0" (564.4mm) |
26.0" (665.4mm) |
18.9" (480mm) |
22.9" (581.6mm) |
0.3" (7mm) |
0.3" (7mm) |
| 20x30" (508x762mm) |
22.0" (564.4mm) |
32.0" (818.2mm) |
18.9" (480mm) |
28.9" (734mm) |
0.3" (7mm) |
0.3" (7mm) |
| 24x24" (609.6x609.6mm) |
26.0" (665.4mm) |
26.0" (665.4mm) |
22.9" (581.6mm) |
22.9" (581.6mm) |
0.3" (7mm) |
0.3" (7mm) |
| 24x30" (609.6x762mm) |
26.0" (666.2mm) |
32.0" (818.2mm) |
22.9" (581.6mm) |
28.9" (734mm) |
0.3" (7mm) |
0.3" (7mm) |
| 24x36" (609.6x914.4mm) |
26.0" (665.4mm) |
38.0" (970.2mm) |
22.9" (581.6mm) |
34.9" (886.4mm) |
0.3" (7mm) |
0.3" (7mm) |
For more information, please call us 1-888-966-9539 or send us an email to support@zno.com.
