The graph below is designed to help you if you are creating an Image Wrap for Zno's Canvas Gallery Wrap.

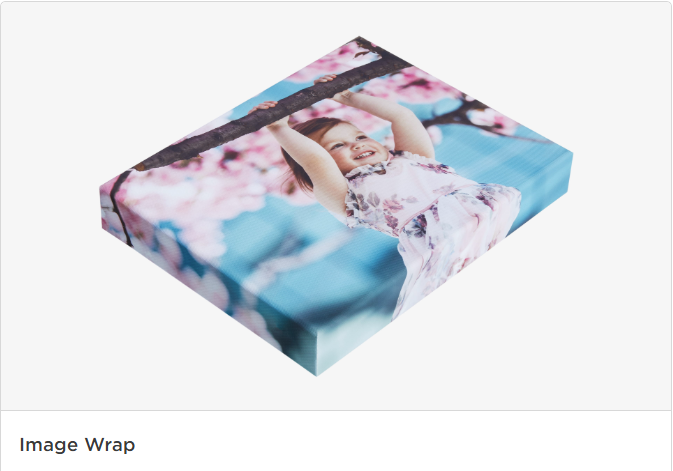

If you select an Image Wrap for the Canvas Gallery Wrap, your image will wrap around the sides of canvas frame.

To crop, or design your image accordingly, please use the graph below. Please select the size of canvas you are ordering in the first row on the left side. Then select the type of frame in the top row.

For example, if you are ordering a 5x7 Standard Frame Image Wrap, the front of the image the overall image must be 7.7"x9.7" and the 5x7" area in the center will be centered on the front of the canvas.

Canvas Gallery Wrap	Image Wrap (Thin Frame)		Image Wrap (Standard Frame)		Image Wrap (Thick Frame)		Image Wrap (Rigid Frame)
Canvas Gallery Wrap	Image Height	Image Width	Image Height	Image Width	Image Height	Image Width	Image Height	Image Width
5x7" 127x177.8 mm	6.7″ 171 mm	8.7″ 221.8 mm	7.7″ 195 mm	9.7″ 245.8 mm	8.2″ 209 mm	10.2″ 259.8 mm	10″ 253 mm	12″ 303.8 mm
6x6" 152.4x152.4 mm	7.7″ 196.4 mm	7.7″ 196.4 mm	8.7″ 220.4 mm	8.7″ 220.4 mm	9.2″ 234.4 mm	9.2″ 234.4mm	11″ 278.4 mm	11″ 278.4 mm
8x8" 203.2x203.2 mm	9.7″ 247.2 mm	9.7″ 247.2 mm	10.7″ 271.2 mm	10.7″ 271.2 mm	11.2″ 285.2 mm	11.2″ 285.2 mm	13″ 392.2 mm	13″ 392.2 mm
8x10" 203.2x254 mm	9.7″ 247.2 mm	11.7″ 298 mm	10.7″ 271.2 mm	12.7″ 322 mm	11.2″ 285.2 mm	13.2″ 336 mm	13″ 392.2 mm	15″ 380 mm
8x12" 203.2x304.8 mm	9.7″ 247.2 mm	13.7″ 348.8 mm	10.7″ 271.2 mm	14.7″ 372.8 mm	11.2″ 285.2 mm	15.2″ 386.8 mm	13″ 392.2 mm	17″ 430.8 mm
10x10" 254x254 mm	11.7″ 298 mm	11.7″ 298 mm	12.7″ 322 mm	12.7″ 322 mm	13.2″ 336 mm	13.2″ 336 mm	15″ 380 mm	15″ 380 mm
10x20" 254x508 mm	11.7″ 298 mm	21.7″ 552 mm	12.7″ 322 mm	22.7″ 576 mm	13.2″ 336 mm	23.2″ 590 mm	15″ 380 mm	25″ 634 mm
10x24" 254x609.6 mm	11.7″ 298 mm	25.7″ 653.6 mm	12.7″ 322 mm	26.7″ 677.6 mm	13.2″ 336 mm	27.2″ 691.6 mm	15″ 380 mm	29″ 735.6 mm
11x14" 279.4x355.6 mm	12.7″ 323.4 mm	15.7″ 399.6 mm	13.7″ 347.4 mm	16.7″ 423.6 mm	14.2″ 361.4 mm	17.2″ 437.6 mm	16″ 405.4 mm	19″ 481.6 mm
12x12" 304.8x304.8 mm	13.7″ 348.8 mm	13.7″ 348.8 mm	14.7″ 372.8 mm	14.7″ 372.8 mm	15.2″ 386.8 mm	15.2″ 386.8 mm	17″ 430.8 mm	17″ 430.8 mm
12x16" 304.8x406.4 mm	13.7″ 348.8 mm	17.7″ 450.4 mm	14.7″ 372.8 mm	18.7″ 474.4 mm	15.2″ 386.8 mm	19.2″ 488.4 mm	17″ 430.8 mm	21″ 532.4 mm
12x18" 304.8x457.2 mm	13.7″ 348.8 mm	19.7″ 501.2 mm	14.7″ 372.8 mm	20.7″ 525.2 mm	15.2″ 386.8 mm	21.2″ 539.2 mm	17″ 430.8 mm	23″ 583.2 mm
12x24" 304.8x609.6mm	13.7″ 348.8 mm	25.7″ 653.6 mm	14.7″ 372.8 mm	26.7″ 677.6 mm	15.2″ 386.8 mm	27.2″ 691.6 mm	17″ 430.8 mm	29″ 735.6 mm
12x36" 304.8x914.4 mm	13.7″ 348.8 mm	37.7″ 958.4 mm	14.7″ 372.8 mm	38.7″ 982.4 mm	15.2″ 386.8 mm	39.2″ 996.4 mm	17″ 430.8 mm	41″ 1040.4 mm
16x16" 406.4x406.4 mm	17.7″ 450.4 mm	17.7″ 450.4 mm	18.7″ 474.4 mm	18.7″ 474.4 mm	19.2″ 488.4 mm	19.2″ 488.4 mm	21″ 532.4 mm	21″ 532.4 mm
16x20" 406.4x508 mm	17.7″ 450.4 mm	21.7″ 552 mm	18.7″ 474.4 mm	22.7″ 576 mm	19.2″ 488.4 mm	23.2″ 590 mm	21″ 532.4 mm	25″ 634 mm
16x24" 406.4x609.6 mm	17.7″ 450.4 mm	25.7″ 653.6 mm	18.7″ 474.4 mm	26.7″ 677.6 mm	19.2″ 488.4 mm	27.2″ 691.6 mm	21″ 532.4 mm	29″ 735.6 mm
16x48" 406.4x1219.2 mm	17.7″ 450.4 mm	49.7″ 1263.2mm	18.7″ 474.4 mm	50.7″ 1287.2 mm	19.2″ 488.4 mm	51.2″ 1301.2 mm	21″ 532.4 mm	53″ 1345.2 mm
18x24" 457.2x609.6 mm	19.7″ 501.2 mm	25.7″ 653.6 mm	20.7″ 525.2 mm	26.7″ 677.6 mm	21.2″ 539.2 mm	27.2″ 691.6 mm	23″ 583.2 mm	29″ 735.6 mm
20x20" 508x508 mm	21.7″ 552 mm	21.7″ 552 mm	22.7″ 576 mm	22.7″ 576 mm	23.2″ 590 mm	23.2″ 590 mm	25″ 634 mm	25″ 634 mm
20x24" 508x609.6 mm	21.7″ 552 mm	25.7″ 653.6 mm	22.7″ 576 mm	26.7″ 677.6 mm	23.2″ 590 mm	27.2″ 691.6 mm	25″ 634 mm	29″ 735.6 mm
20x30" 508x762 mm	21.7″ 552 mm	31.7″ 806 mm	22.7″ 576 mm	32.7″ 830 mm	23.2″ 590 mm	33.2″ 844 mm	25″ 634 mm	35″ 888 mm
20x40" 508x1016 mm	21.7″ 552 mm	41.7″ 1060 mm	22.7″ 576 mm	42.7″ 1084 mm	23.2″ 590 mm	43.2″ 1098 mm	25″ 634 mm	45″ 1142 mm
24x24" 609.6x609.6 mm	25.7″ 653.6 mm	25.7″ 653.6 mm	26.7″ 677.6 mm	26.7″ 677.6 mm	27.2″ 691.6 mm	27.2″ 691.6 mm	29″ 735.6 mm	29″ 735.6 mm
24x30" 609.6x762 mm	25.7″ 653.6 mm	31.7″ 806 mm	26.7″ 677.6 mm	32.7″ 830 mm	27.2″ 691.6 mm	33.2″ 844 mm	29″ 735.6 mm	35″ 888 mm
24x36" 609.6x914.4 mm	25.7″ 653.6 mm	37.7″ 958.4 mm	26.7″ 677.6 mm	38.7″ 982.4 mm	27.2″ 691.6 mm	39.2″ 996.4 mm	29″ 735.6 mm	41″ 1040.4 mm
24x48" 609.6x1219.2 mm	25.7″ 653.6 mm	49.7″ 1263.2 mm	26.7″ 677.6 mm	50.7″ 1287.2 mm	27.2″ 691.6 mm	51.2″ 1301.2 mm	29″ 735.6 mm	53″ 1345.2 mm
30x40" 762x1016 mm	31.7″ 806 mm	41.7″ 1060 mm	32.7″ 830 mm	42.7″ 1084 mm	33.2″ 844 mm	43.2″ 1098 mm	35″ 888 mm	45″ 1142 mm

For more information, please call 1-888-966-9539 or email support@zno.com.
